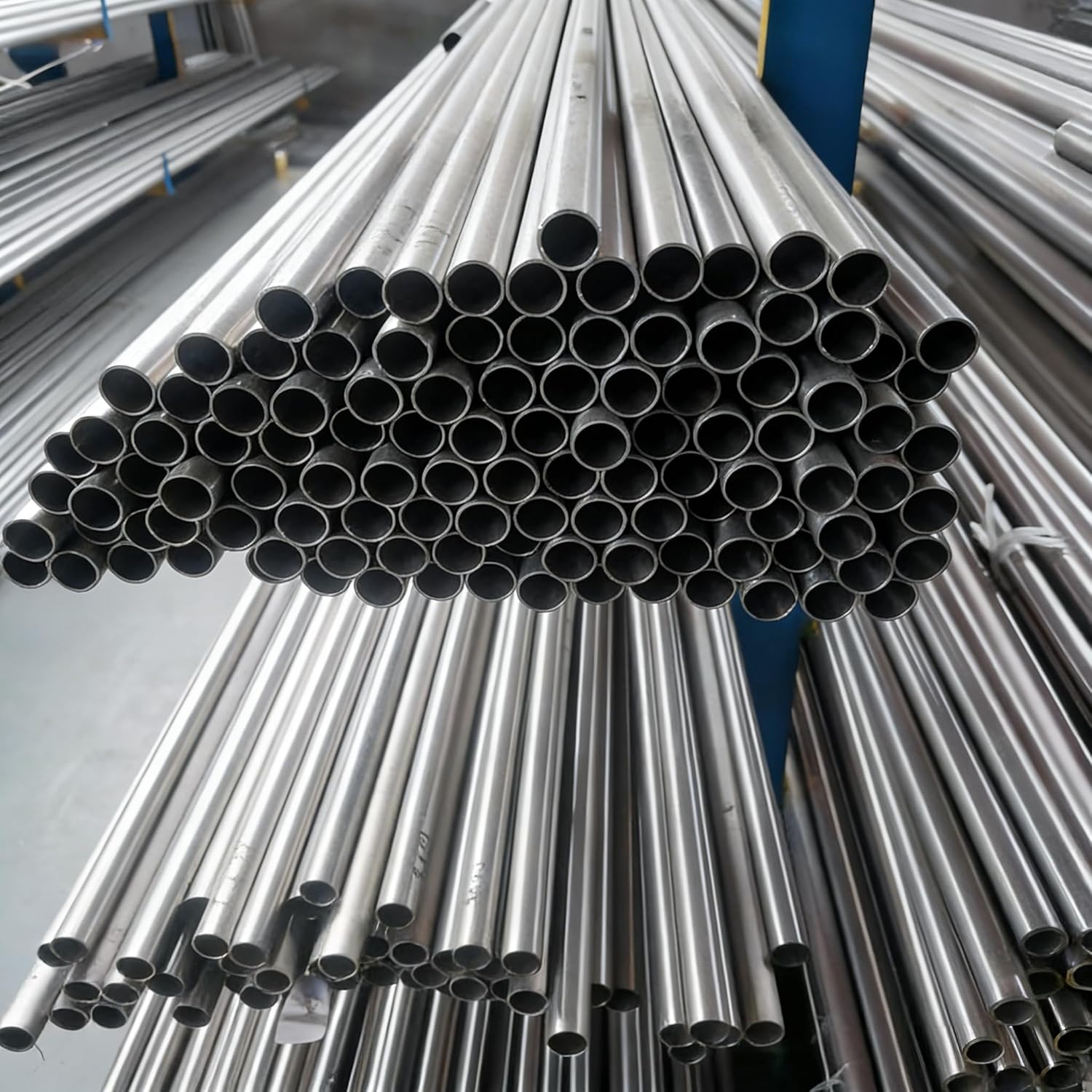

GR9 Titanium Tube, OD 22.2mm/0.87'', Wall Thickness 0.9mm/0.035'', Length 1000mm/39.37″, Titanium Round Straight Tubing Ti Seamless Hollow Pipes High-strength Metal Capillary Tubing

Titansmith GR9 Titanium Alloy Tube, Aerospace-Grade Ti-3Al-2.5V Tubing, OD 22.2mm - 28.6mm, Length 1000mm, High-Strength & Weldable Metal Pipe for Precision EngineeringAbout Us:Titansmith has been specializing in titanium alloy fasteners and raw materials for over 15 years. We maintain a large stock of high-quality raw materials and strictly adhere to ISO9001:2015 and AS 9100:2018 standards in our production. Our advantages lie in mature technology, advanced equipment, and high-quality products.GR9 Titanium Alloy Tube Advantages:1. Aerospace-Grade Strength: Offers nearly double the tensile strength of standard Grade 2 titanium for superior structural integrity.2. Optimal Strength-to-Weight Ratio: Provides exceptional strength while remaining lightweight, achieving significant weight savings over stainless steel and other metals in high-stress applications.3. Enhanced Performance Under Stress: Combines excellent corrosion resistance with high mechanical strength, performing reliably in high-pressure, high-stress, and a wide range of temperature environments.4. Proven Weldability & Formability: Maintains good weldability and processing characteristics, allowing for fabrication into complex components where both strength and corrosion resistance are critical.5. Premium Applications: Ideal for aerospace, high-performance automotive, marine, chemical processing, and precision engineering systems.Specifications:Material: GR9 (Ti-3Al-2.5V) Titanium AlloyCondition: Annealed (Standard)Tensile Strength (Typical): ≥ 620 MPaYield Strength (Typical): ≥ 483 MPaDensity: ~4.51 g/cm³Custom sizes may be available upon inquiryPackage Includes:1 x GR9 Titanium Alloy TubePlease Note:Import duties are prepaid. However, any additional customs fees charged by your country upon arrival are the responsibility of the recipient.

• 【High-Quality Material】– Grade 9 titanium alloy (Ti-3Al-2.5V), this tube offers superior strength while maintaining the classic titanium advantages of being ultra-lightweight and highly resistant to heat and corrosion. It provides excellent weldability and finishing characteristics, along with high toughness and stability that prevent deformation after precision machining.
• 【Specifications】- Material: GR9 (Grade 9) Titanium Alloy; Composition: Ti-3Al-2.5V (Titanium alloyed with 3% Aluminum, 2.5% Vanadium); Tensile Strength: ≥ 620 MPa; Yield Strength: ≥ 483 MPa; Elongation: ≥ 15%; Standard: ASTM B338; OD: 22.2mm(0.87"), Wall Thickness: 0.9mm(0.035"), Length: 1000mm(39.37"), Package includes: 1 x Titanium tube
• 【Aerospace-Grade Strength】- With nearly double the strength of Grade 2 titanium, GR9 alloy tubing delivers an unmatched strength-to-weight ratio for critical, high-pressure applications. It maintains excellent corrosion resistance while reliably withstanding greater stresses, making it the superior choice for aerospace hydraulics, performance automotive lines, and demanding marine systems.
• 【Corrosion Resistance & Longevity】- GR9 titanium is the engineered solution where both enhanced mechanical performance and durability are required. It perfectly bridges the gap between pure titanium and stronger alloys, offering ideal properties for lightweight aircraft fuel lines, high-performance marine fittings, and critical chemical processing components.
• 【100% Satisfaction】– All products are supplied directly from the Titansmith factory. Titanium Tubes undergo chemical analysis and physical performance tests (tensile testing, Hydrostatic testing, and Ultrasonic testing etc.) before leaving the factory to ensure quality. Material test certificates are available upon request. Note: Please confirm the specific size before purchasing.
