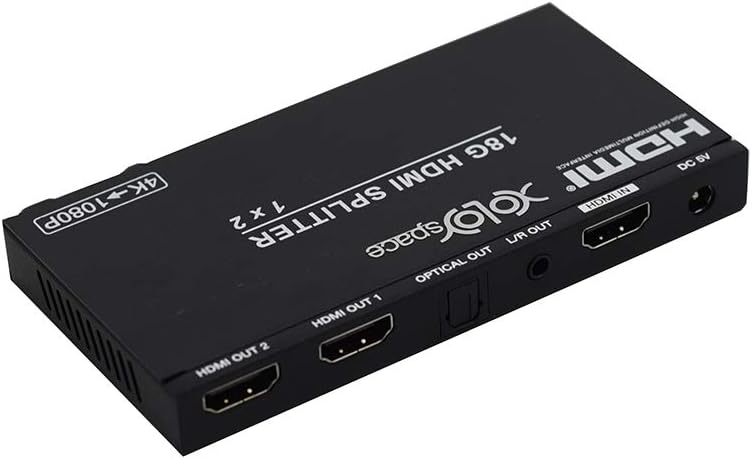

66121 1x2 HDMI 2.0 Splitter 4K 60HZ HDR with 4K to 1080p downscaler and Audio Extractor Optical Audio Out

Features: HDMI 2.0b, HDCP2.2/HDCP1.4 compliant. Video Bandwidth: 18Gbps Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4) Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth: 4K60Hz 8-bit, 1080P 12-bit Supports digital and analog audio extract output from HDMI source. Supports output bypass and 4K->1080P downscaler function via dial switch on panel. EDID can be selected COPY and AUTO modes via dial switch on panel. (COPY: It copys OUT 1 port EDID setting to all outputs port; AUTO: Compare OUT 1 and OUT 2 EDID setting and output the best resolution to all outputs). Supports HDMI audio format LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD; Optical Audio Formats: LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD,Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1; L/R Audio Formats: PCM 2.0; ESD Protection: Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) Dimensions: 120mm(W)×62.5mm(D)×14mm(H); Weight: 166g.

• XOLORspace 66121 1x2 HDMI 2.0 Splitter distributes one HDMI source to two HDMI displays simultaneously.
• It is HDMI 2.0b and HDCP 2.2 standard. It supports resolution up to 4K 60Hz (4:4:4) and 8 bit HDR.
• It is with 4k to 1080p downscaler and can output 4k 60hz with HDR and 1080p simultaneously.

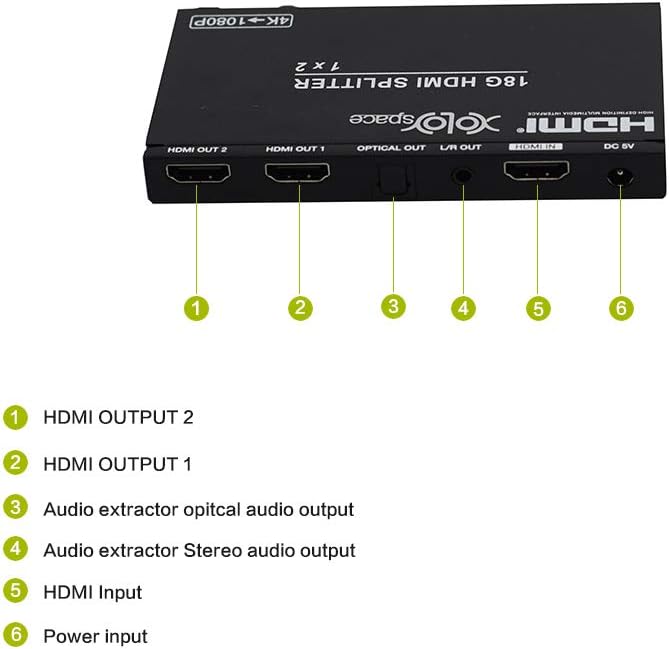

• This product supports audio extract from HDMI source to optical and analog output.
• It is ultra slim design suitable to be hide behind the TV.
